COPPER 1.2μF 600VAC 300kVar Power Film Capacitor

Name: COPPER 12μF 600VAC 300kVar Power Film Capacitor
Brand: GDHY
Price: 212 USD

Brand Name : GDHY

Model Number : C41601125KBA1301-01

Certification : SGS,ISO

Place of Origin : GUANGZHOU, CHINA

MOQ : 20 PCS

Price : 212 USD /PCS

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 PCS /MONTH

Delivery Time : 14 DAYS

Packaging Details : CARTON WITH FOAM BOX AND ANTI-CORROSION PROTECT

BRAND : GDHY

PLACE OF ORIGIN : GUANGZHOU, CHINA

SUPPLIER TYPE : ORIGINAL MANUFACTURER

MODEL NUMBER : C41601125KBA1301-01

CHARACTERISTICS : WATER COOLED, CONDUCTION COOLED, EXCELLENT HEAT DISSPATION.

CORE : IMPORTED COPPER FOIL

OPERATION TEMP : -40℃～85℃

CERTIFICATION : SGS,ISO

TERMINAL : COPPER

CAPACITANCE : 1.2μF

TOLERANCE : ±10%

RATED POWER : 300KVAR

RATED VOLTAGE : 600VAC

DIMENSION : 80*80*36.5

LIFE EXPECTANCY : 100000h at UN and 70℃,30000h at Urms

ADVANTAGE : KEEP LOW DF AND LONG LIFE EXPECTANCY

PRINTING : LASER MARKING

APPLICATION : NEW ENERGY FIELDS; TRANSPORTATION FACILITIES; HIGH POWER INDUSTRIAL FACILITIES

QUALITY CONTROL : IQC, SPC, INSPECTION, WAREHOUSING

INSTALLATION : THROUGH HOLE

Contact Now

COPPER 1.2μF 600VAC 300kVar Power Film Capacitor C41-BA1 1.2UF/600V/300KVAR (ALCONFP-7-300/ CELEM CSP150) HIGH-FREQUENCE RESONANCE CAPACITORS WATER-COOLING CAPACITOR

Technical Parameter

Reference Standards	GB/T 3984-2004 IEC 60110.1
Operating Temperature Range	-40℃～85℃
Capacity Range	1.2μF
Capacity Range	300kVar
Rated Voltage	600VAC
Capacity Tolerance	±10%
Test Voltage between Terminals	1.5UNAC 10s 2~3.5UNDC 10s at 25℃±5℃
Dissipation Factor	tgδ≤5×10-4 at 25℃±5℃,1kHz
Insulation Resistance	R•C≥3000s,at 100VDC,25℃±5℃,60s
Life Expectancy	100000h at UN and 70℃,30000h at Urms

Download specification:C41-BA1.pdf

Application

Induction Heating, Electric Cars, Medical Imaging, EV Wireless Chargers, Resonant Circuits.

Features

● Conduction water-cooled

● Polypropylene dielectric

● Low dissipation factor(tgδ), low ESL, low ESR

● High voltage, high frequency and high dV/dt,

● Can bear large current, excellent heat dissipation

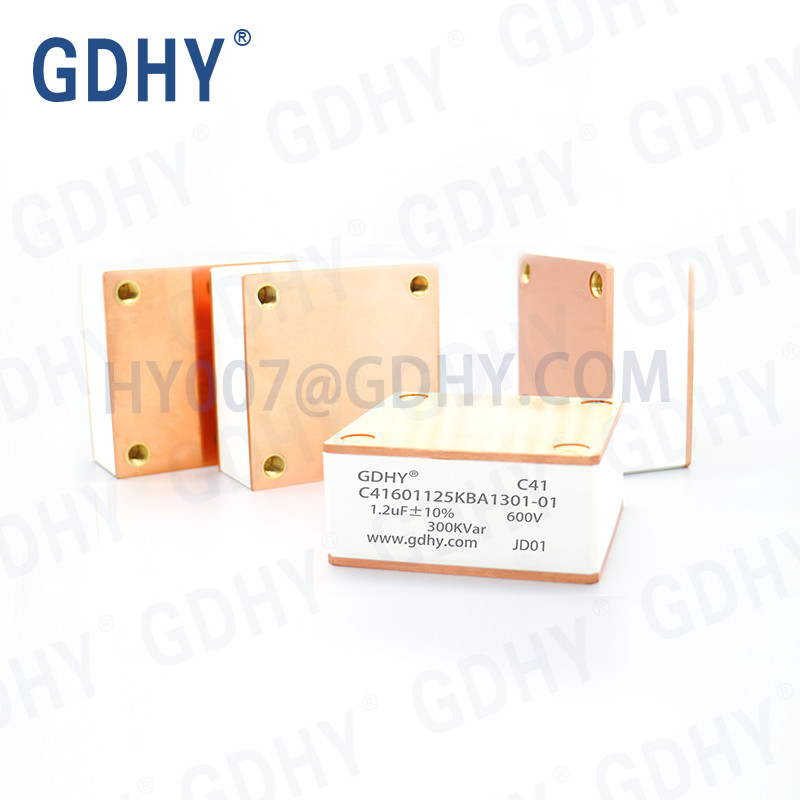

Product Picture
