GDHY 400VDC CBB20 1.5UF Axial Audio Film Capacitor

Product Categories

Guangdong Huayu Electronic Company Limited

Contact Now

Name: GDHY 400VDC CBB20 15UF Axial Audio Film Capacitor
Brand: GDHY
Price: 1 USD

Brand Name : GDHY

Model Number : CBB20 1.5UF 400V/XXP 155J400V

Certification : SGS,ISO

Place of Origin : China

MOQ : 10Kpcs

Price : USD1/PC

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1KKpcs/Month

Delivery Time : 14days

Capacity : 1.5uF

Voltage : 400VDC

Size(L*H*T) : 33mm*24mm*16mm

Model : CBB20 1.5UF 400V/XXP 225J400V

Brand : GDHY

Terminal : CP Wire

Capacity Tolerance : ±5% ~ ±10%

Place Of Original : China

Supplier Type : Manufacturer

Lead : 1mm

Color : Yellow/White/Red

Encapsulation : Flame Retardant Epoxy Resin

Print : Ink/ laser

Application : Temperature compensating circuit /Timing oscillation circuit /Audio frequency division circuit

Contact Now

CBB20 1.5UF 400VDC for Audio Frequency Division Circuit Axial Audio Metallized Polypropylene Film Capacitor

Reference Standards	GB/T 10190(IEC 60384-16)
Climate Category	40/085/21
Operating Temperature Range	-40℃～85℃ Tmax 105℃
Capacity Range	0.01～40μF
Rated Voltage	250VDC/400VDC/630VDC
Capacity Tolerance	±5%(J)；±10%(K)；±20%(M)
Withstand voltage	1.6UR (5S)
Dissipation Factor	tgδ≤0.0010 (20℃, 1KHz)
Insulation Resistance	C≤0.33μF R≥100000MΩ(at 20℃ 100VDC 1Min) C>0.33 μF RCN≥30000S (at 20℃ 100VDC 1Min)

Application

Temperature compensating circuit

Timing oscillation circuit

Audio frequency division circuit

Features

● Metallized polypropylene film dielectric

● Non-inductive winding structure

● Myla tape with flame retardant epoxy resin at both ends

● Axial tin copper wire leads

● Resistance to high voltage, small tgδ, low temperature rise

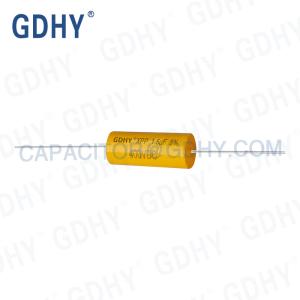

Product Picture
