400KVar Water Cooled Capacitor

Name: 400KVar Water Cooled Capacitor
Brand: GDHY
Price: 30 USD

Brand Name : GDHY

Model Number : C41102664KBB2401-01

Place of Origin : China

MOQ : 20pcs

Price : USD30/PC

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000PCS/ MONTH

Delivery Time : 14days

Certification : SGS,ISO

Capacity : 0.66uF

Voltage : 1000VAC

Size : 80mm*80mm*36mm

Power : 400KVAR

Frequency : 95-216KHZ

Model : C41102664KBB2401-01

Capacity Tolerance : ±5% ~ ±10%

Material : Polypropylnen Film&Copper

Series : Water Cooled Capacitor

Place Of Original : China

Max Irm : 600A

Application : Induction Heating, Heat Treatment, Plasma Applications, Resonant Circuits, Medical Imaging, Wireless Power Transfer, EV (electric Vehicle) Charging, IPT, High Frequency Inverters,etc.

Contact Now

C41-BB2 0.66uF 1000V 400KVar Alcon FP-7-300 for induction melting machine Water Cooled Capacito

Technical Parameter

Reference Standards	GB/T 3984-2004 IEC 60110.1
Operating Temperature Range	-40℃～85℃
Capacity Range	0.33μF~4μF
Power Range	300~400kVar
Rated Voltage	400-1100VAC
Capacity Tolerance	±5% ~ ±10%
Test Voltage between Terminals	1.5UNAC 10s 2~3.5UNDC 10s at 25℃±5℃
Dissipation Factor	tgδ≤5×10-4 at 25℃±5℃,1kHz
Insulation Resistance	R•C≥3000s,at 100VDC,25℃±5℃,60s
Life Expectancy	100000h at UN and 70℃,30000h at Urms

Application

Induction heating, heat treatment, plasma applications, resonant circuits, medical imaging, wireless power transfer, EV (electric vehicle) charging, IPT, high frequency inverters,etc.

Features

● Conduction water-cooled

● Polypropylene dielectric

● Low dissipation factor(tgδ), low ESL, low ESR

● High voltage, high frequency and high dV/dt,

● Can bear large current, excellent heat dissipation

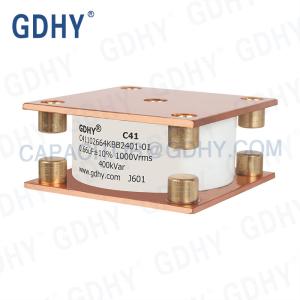

Product Picture
