GDHY 500VAC 1200VDC 8UF Metallic Film Capacitor

Name: GDHY 500VAC 1200VDC 8UF Metallic Film Capacitor
Brand: GDHY
Price: 14.1 USD

Quality GDHY 500VAC 1200VDC 8UF Metallic Film Capacitor wholesale

Brand Name : GDHY

Model Number : C44501705JFF01M6-01

Certification : SGS,ISO

Place of Origin : GUANGZHOU, CHINA

MOQ : 50 PCS

Price : USD 14.1/PCS

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 1000PCS/MONTH

Delivery Time : 14 DAYS

BRAND : GDHY

PLACE OF ORIGIN : GUANGZHOU, CHINA

SUPPLIER TYPE : ORIGINAL MANUFACTURER

CHARACTERISTICS : LOW ESL ESR, HIGH FREQUENCY HIGH CURRENT ENDURANCE, SELF HEALING.

CERTIFICATION : SGS, ISO

OPERATION TEMP : -40℃～85℃ Tmax 105℃

CAPACITANCE : 7UF

TOLERANCE : ±5%

DC VOLTAGE : 1200VDC

TYPE : RESONANT CAPACITOR

APPLICATION : INDUCTION HEATING MACHINE, WELDING MACHINE

AC VOLTAGE : 500VAC

TERMINAL : TIN PLATED COPPER

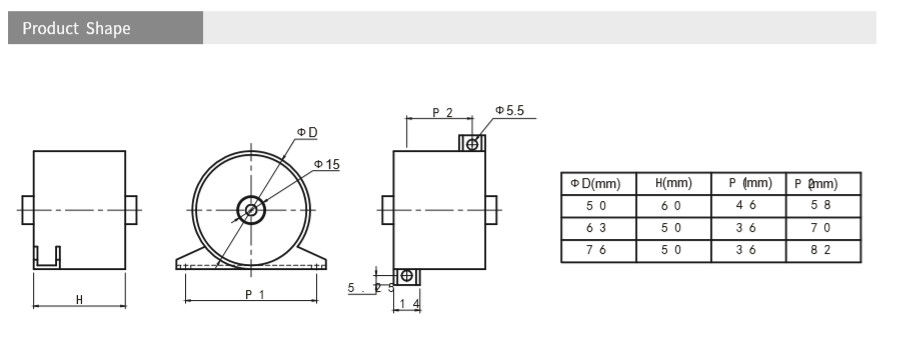

DIMENSION : L*D: 50*75 MM

INSTALLATION : BRACKET

PRINTING : LASER MARKING

CURRENT : 90A

ENCAPSUALTION : EPOXY RESIN FILLING

MATERIAL : POLYPROPYLENE FILM

Contact Now

GDHY 500VAC 1200VDC 8UF Metallic Film Capacitor C44 8UF/500VAC/1200VDC 90A 5% SELF HEALING POWER ELECTRONIC DEVICE WELDING MACHINE RESONANT METALLIC FILM CAPACITOR

Technical Parameter

Reference Standards	IEC 61071.IEC60110
Operating Temperature Range	-40℃～85℃ Tmax 105℃
Capacity Range	1μF～7μF
Rated Voltage	1200VDC～2000VDC
Capacity Tolerance	±5%(J); ±10%(K)
Withstand Voltage	1.5Un DC/10S
Dissipation Factor	tgδ≤0.0010 C≤1μF f=10KHz at 20℃
Insulation Resistance	RsC≥5000S (20℃ 100VDC 60S)
Flame Retardation	UL94V-0
Life Expectancy	100000hrs ( Un hotspot ≤ 70℃)

Specification download: C44-small size.pdf

Application

Widely used series circuits or parallel resonant circuites of power electronic devices.
Welding power supplies, Induction heating equipment in resonance occasions.

Feature

Plastic packaging, epoxy resin filling.
Lead by the tinned copper nut, small size and convenient installation.
High-frequency and high current endurance.
Low ESL, low ESR.
High pulse current, high dv/dt ehdurance and good stability, self healing.

Product Picture
