INDUCTION HEATER 1200V DC 4UF RESONANT CAPACITOR INDUCTOR RESONANT CAPACITOR FOR LLC CONVERTER

Product Categories

Guangdong Huayu Electronic Company Limited

Contact Now

Name: INDUCTION HEATER 1200V DC 4UF RESONANT CAPACITOR INDUCTOR RESONANT CAPACITOR FOR LLC CONVERTER
Brand: GDHY
Price: 8.8 USD

Brand Name : GDHY

Model Number : C44501405JFM6-01

Certification : SGS,ISO

Place of Origin : GUANGZHOU, CHINA

MOQ : 50 PCS

Price : USD 8.8/PCS

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 1000PCS/MONTH

Delivery Time : 14 DAYS

BRAND : GDHY

PLACE OF ORIGIN : GUANGZHOU, CHINA

SUPPLIER TYPE : ORIGINAL MANUFACTURER

CHARACTERISTICS : LOW ESL ESR, HIGH FREQUENCY HIGH CURRENT ENDURANCE, SELF HEALING.

CERTIFICATION : SGS, ISO

OPERATION TEMP : -40℃～85℃ Tmax 105℃

CAPACITANCE : 4UF

TOLERANCE : ±5%

DC VOLTAGE : 1200VDC

TYPE : RESONANT CAPACITOR

APPLICATION : INDUCTION HEATING MACHINE, WELDING MACHINE

AC VOLTAGE : 500VAC

TERMINAL : TIN PLATED COPPER

DIMENSION : L*D: 50*63 MM

INSTALLATION : BRACKET

PRINTING : LASER MARKING

CURRENT : 75A

ENCAPSUALTION : EPOXY RESIN FILLING

MATERIAL : POLYPROPYLENE FILM

Contact Now

INDUCTION HEATER 1200V DC 4UF RESONANT CAPACITOR INDUCTOR RESONANT CAPACITOR FOR LLC CONVERTER

Technical Parameter

Reference Standards	IEC 61071.IEC60110
Operating Temperature Range	-40℃～85℃ Tmax 105℃
Capacity Range	1μF～7μF
Rated Voltage	1200VDC～2000VDC
Capacity Tolerance	±5%(J); ±10%(K)
Withstand Voltage	1.5Un DC/10S
Dissipation Factor	tgδ≤0.0010 C≤1μF f=10KHz at 20℃
Insulation Resistance	RsC≥5000S (20℃ 100VDC 60S)
Flame Retardation	UL94V-0
Life Expectancy	100000hrs ( Un hotspot ≤ 70℃)

Specification download: C44-small size.pdf

Application

Widely used series circuits or parallel resonant circuites of power electronic devices.
Welding power supplies, Induction heating equipment in resonance occasions.

Feature

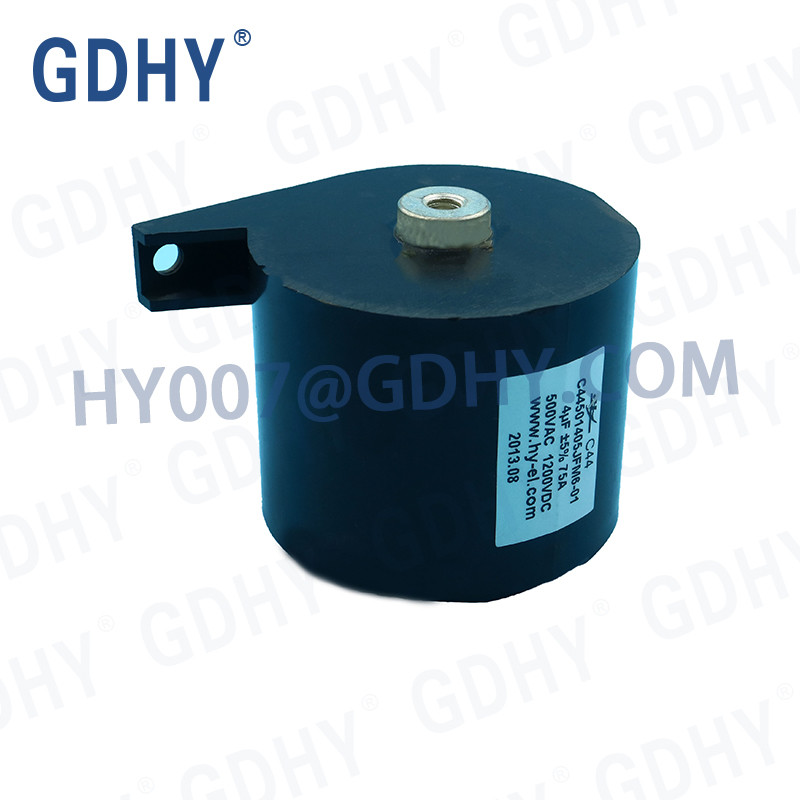

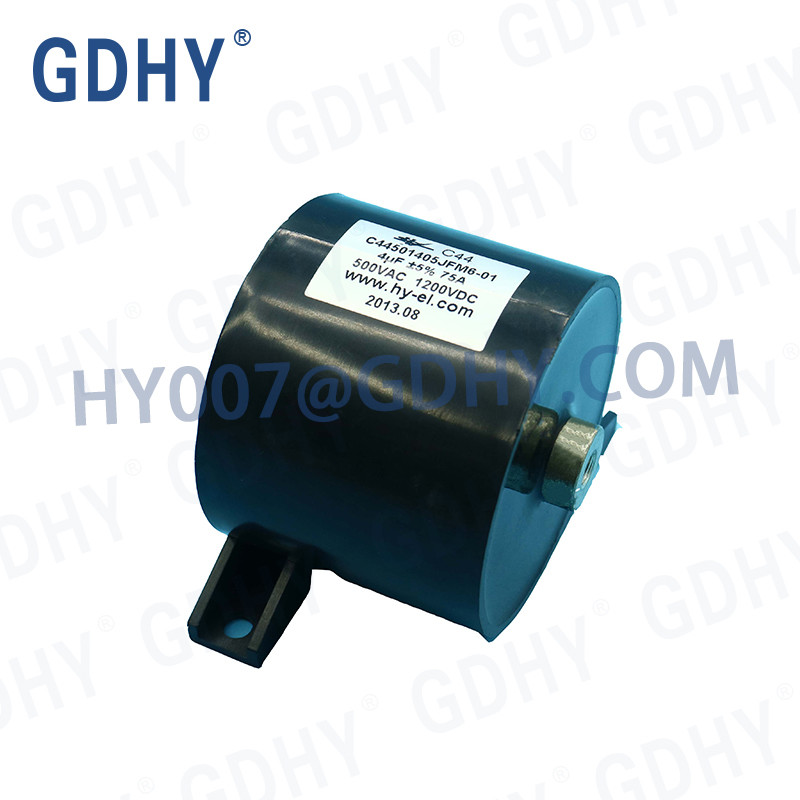

Product Picture
