P52.5 3000VDC 5% 0.47UF SELF RESONANCE FREQUENCY OF CAPACITOR CHINA SUPPLIER FACTORY DIRECT DISCOUNT

Product Categories
Guangdong Huayu Electronic Company Limited
Contact Now

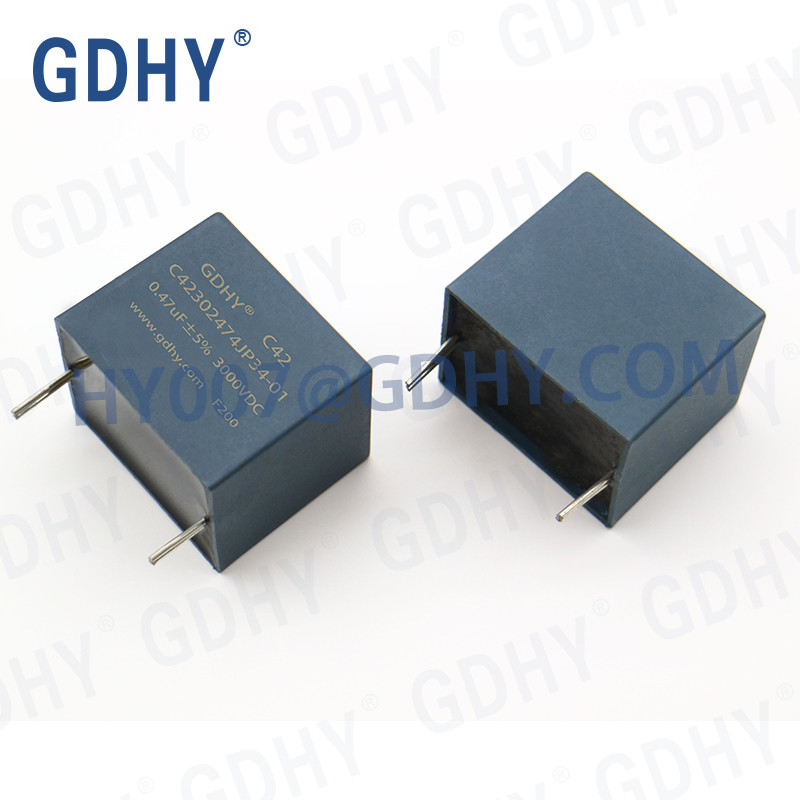

P52.5 3000VDC 5% 0.47UF SELF RESONANCE FREQUENCY OF CAPACITOR CHINA SUPPLIER FACTORY DIRECT DISCOUNT

  • 1
  • 2

Brand Name : GDHY

Model Number : C42302474JP34-01

Certification : SGS,ISO

Place of Origin : GUANGZHOU, CHINA

MOQ : 50 PCS

Price : USD 10.25/PCS

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 1000PCS/MONTH

Delivery Time : 14 DAYS

BRAND : GDHY

PLACE OF ORIGIN : GUANGZHOU, CHINA

SUPPLIER TYPE : ORIGINAL MANUFACTURER

CHARACTERISTICS : HIGH FREQUENCY AND HIGH ENDURANCE, LOW ESL AND ESR ETC

TERMINAL : CP WIRE

CERTIFICATION : SGS, ISO

OPERATION TEMP : -40℃～85℃

CAPACITANCE : 0.47UF

TOLERANCE : ±5%

PACKING : PLASTIC CASE

RATED VOLTAGE : 3000VDC

MATERIAL : POLYPROPYLENE FILM

DIMENSION : LXTXH: 57.5*38*54MM

PRINTING : LASER MARKING

TYPE : RESONANT CAPACITOR

PITCH : 52.5MM

INSTALLATION : THROUGH HOLE

APPLICATION : SWITCHING DEVICE IN POWER ELECTRONICS, PEAK CURRENT ABSORPTION PROTECTION.

Contact Now

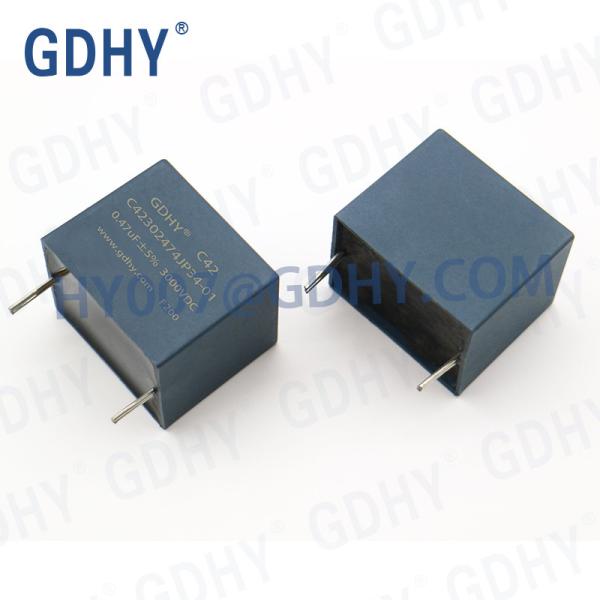

P52.5 3000VDC 5% 0.47UF SELF RESONANCE FREQUENCY OF CAPACITOR CHINA SUPPLIER FACTORY DIRECT DISCOUNTP52.5 3000VDC 5% 0.47UF SELF RESONANCE FREQUENCY OF CAPACITOR CHINA SUPPLIER FACTORY DIRECT DISCOUNT

Technical Parameter

Reference Standards GB/T 17702 IEC 61071
Operating Temperature Range Max.Operating temperature,Top max:+105℃
Upper category temperature:+85℃
Lower category temperature:-40℃
Capacity Range 0.1μF～8.0μF
Rated Voltage 400VDC～3000VDC
Capacity Tolerance ±5%(J); ±10%(K)
Test Voltage between Terminals 1.5Ur(DC)60S 20℃
Test Voltage btw Terminals & Case 1000+2×Ur/√2(VAC) 50Hz 60S(1min 3000V)
Dissipation Factor tgδ≤0.0005 C≤1μF f=10KHz at 20℃
tgδ≤0.0010 C≥1μF f=10KHz at 20℃
Insulation Resistance C≤0.33μF Rs≥15000MΩ(20℃ 100VDC 60S)
C>0.33 μF RsC≥5000S (20℃ 100VDC 60S)
Flame Retardation UL94V-0
Life Expectancy 100000hrs ( Ur hotspot ≤ 85℃)


Specification download: C42.pdf

Application

● Widely used in series circuits or parallel resonant circuits of power electronic devices.

● Also applied to the peak voltage of the switching device in power electronics, peak current absorption protection.

Feature

● Plastic shell encapsulation, epoxy resin sealed

●Tinned copper wire, small size, easy installation

● High voltage resistance, small dissipation factor (tgδ)

● Low ESL and ESR, low temperature rise

● High pulse current, high dV/dt, high stability, self healing

Product Picture

P52.5 3000VDC 5% 0.47UF SELF RESONANCE FREQUENCY OF CAPACITOR CHINA SUPPLIER FACTORY DIRECT DISCOUNTP52.5 3000VDC 5% 0.47UF SELF RESONANCE FREQUENCY OF CAPACITOR CHINA SUPPLIER FACTORY DIRECT DISCOUNT

Product Shape

P52.5 3000VDC 5% 0.47UF SELF RESONANCE FREQUENCY OF CAPACITOR CHINA SUPPLIER FACTORY DIRECT DISCOUNT

Production

P52.5 3000VDC 5% 0.47UF SELF RESONANCE FREQUENCY OF CAPACITOR CHINA SUPPLIER FACTORY DIRECT DISCOUNT

Workshop&Equipment

P52.5 3000VDC 5% 0.47UF SELF RESONANCE FREQUENCY OF CAPACITOR CHINA SUPPLIER FACTORY DIRECT DISCOUNT

Packing method

P52.5 3000VDC 5% 0.47UF SELF RESONANCE FREQUENCY OF CAPACITOR CHINA SUPPLIER FACTORY DIRECT DISCOUNT

Certificate

P52.5 3000VDC 5% 0.47UF SELF RESONANCE FREQUENCY OF CAPACITOR CHINA SUPPLIER FACTORY DIRECT DISCOUNT

Exhibition

P52.5 3000VDC 5% 0.47UF SELF RESONANCE FREQUENCY OF CAPACITOR CHINA SUPPLIER FACTORY DIRECT DISCOUNT

P52.5 3000VDC 5% 0.47UF SELF RESONANCE FREQUENCY OF CAPACITOR CHINA SUPPLIER FACTORY DIRECT DISCOUNT
